The Safety Facade Scaffolding System is designed in full compliance with 100% workplace safety regulations and is manufactured according to European standards. To ensure precise leveling of the base, TS EN 74-3 certified base jacks are used, and the system is Safety anchored to the façade with TS EN-certified anchoring components.

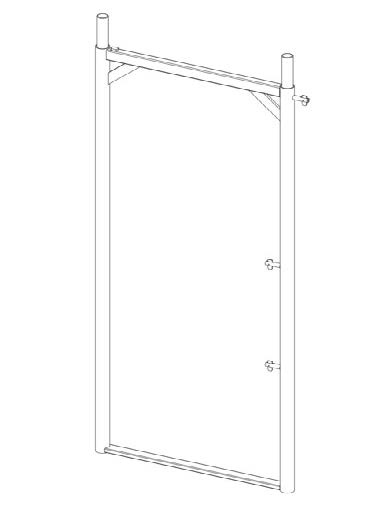

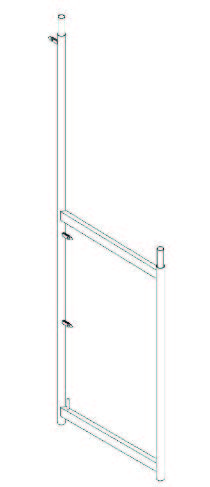

The scaffolding frames are TS EN 12810-1, 12810-2, 12811-1, and 12811-2 certified. Standard production includes 48*3.0 mm steel pipes for the frames, 34*2.0 mm pipes for horizontal connections, and 42*2.5 mm pipes for diagonal connections. All pipes are TSE-certified and undergo rigorous mechanical testing. During production, robotic cutting, drilling, and welding technologies are utilized to ensure precision and durability. Additionally, panels, connection components, and steel platforms are hot-dip galvanized in accordance with TS 914 EN ISO 1461 standards for long-lasting protection.

Safety Facade Scaffolding Installation Steps

• The heights and positions of the base jacks are adjusted according to the Scaffolding Installation Plan.
• Initial frames are mounted onto the base jacks, and distances are set using horizontal connections. The system is leveled properly.
• Laddered platforms are installed on the initial frames.
• The first module is built using panels, horizontal connections, and diagonal braces.
• The first level installation is completed.
• Upper-level platforms are mounted, paying attention to ladder details.
• The second level is built using diagonal braces, horizontal connections, and panels.
• The second level installation is completed, and toe boards are mounted.
• The scaffolding system is anchored to the façade according to the project design.
• The installation continues in the same sequence as outlined in the project plan.

Project Management

For each structure using the Safety Facade Scaffolding System, architectural drawings are carefully reviewed by our engineering team. Material quantities are accurately calculated to ensure efficient use of resources, minimizing waste while meeting the project’s requirements.

Assembly and Disassembly Services

In addition to providing high-quality scaffolding systems, we offer professional assembly and disassembly services performed by our expert team. Throughout every stage of your project, scaffolding installation and removal are carried out safely and efficiently, ensuring smooth progress and compliance with safety standards.

With a focus on safety, precision, and reliability, the Safety Facade Scaffolding System is the ideal choice for your construction needs.
